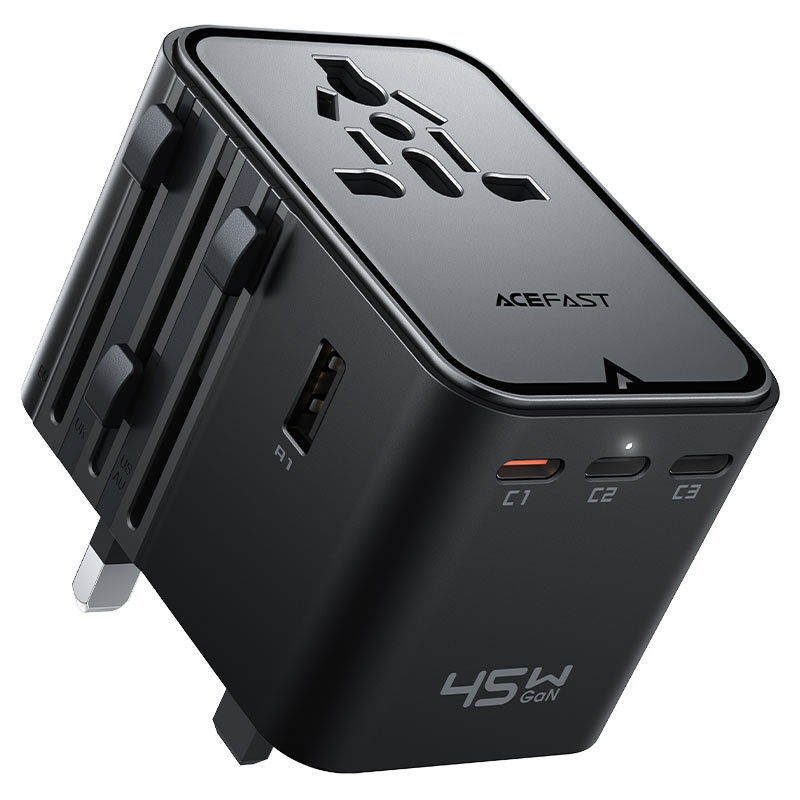

Charging Adapter Z8 2500W + PD45W GaN (3xUSB-C+2xUSB-A)

Sale!

Charging Adapter Z8 2500W + PD45W GaN (3xUSB-C+2xUSB-A)

Original price was: ₨ 5,999.00.Current price is: ₨ 4,999.00.

  • 24 months warranty
  • 2500W + PD45W GaN travel adapter.
  • 2500W at 250V or 1100W at 110V universal socket power.
  • Five ports [3xUSB-C + 2xUSB-A].
  • EU / US / UK / AU switching plugs for worldwide usage.
  • Support most fast charge protocols.
  • High power, small size, easy to carry.
Category: Tag:

Description

2500w 45w gan round icon

High power +
GaN technology

4 standarts socket round icon

4 standarts high power socket

4 standarts plugs round icon

4 standarts switching plugs

3xusbc 2xusba ports round icon

3×USB-C + 2×USB-A ports

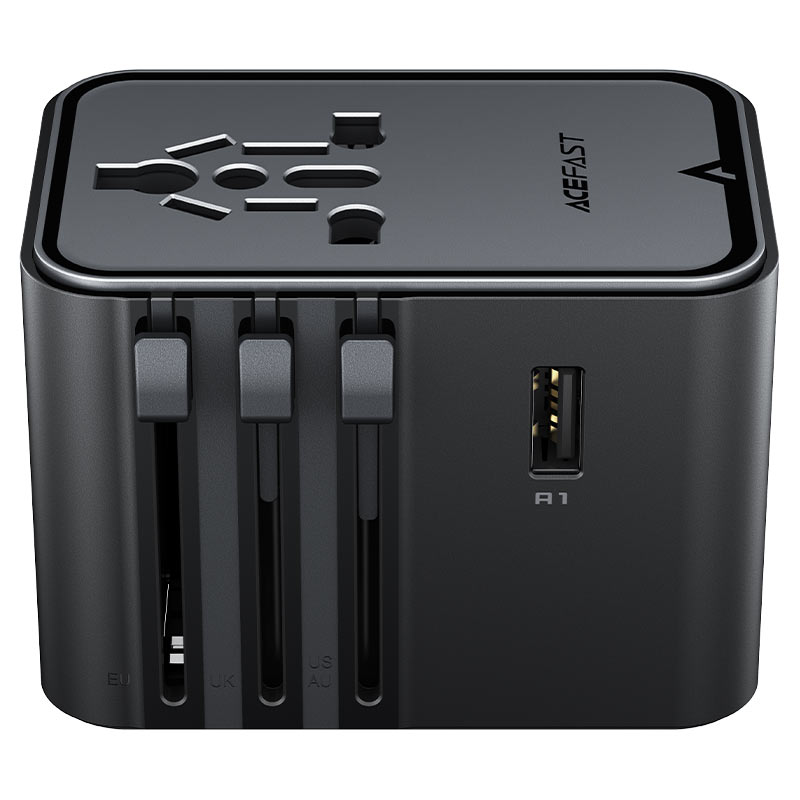

z8 sliding switchers round icon

Plug sliding
switchers

wide compatibility laptop tablet phone round icon

Wide
compatibility

acefast 24 months warranty icon

24 months
warranty

SPECIFICATION

Product name:
ACEFAST Z8 PD45W GaN charging adapter.
Input:
AC100-250V, 50Hz/60Hz, EU / US / UK / AU plugs.
Output:
Socket rated power / current:

  • 1100W at 110V, 2500W at 250V – 10A max.

Single port output:

  • USB-C1: 3.3-16V⎓2.8A (PPS), 5V / 9V / 12V / 15V⎓3A, 20V⎓2.25A – 45W max (PPS / PD3.0 / PD2.0 / QC4+ / QC3.0 / QC2.0 / AFC / FCP / SCP).
  • USB-C2 / USB-C3: 5V⎓3A – 15W max.
  • USB-A1 / USB-A2: 5V⎓2.4A – 12W max.

Four ports output:

  • USB-C2 + USB-C3 + USB-A1 + USB-A2: 5V⎓3A – 15W max.

Five ports output:

  • USB-C1 + [USB-C2 + USB-C3 + USB-A1 + USB-A2]: 30W + [15W] – 45W max.
Material:
Flame-retardant PC.
Sizes:
75.3 × 52.5 × 50.3mm.
Weight:
163g.
Certification:
CE, RoHS, FCC, EAC.
💡Product features:💡
🔌Multifunction plug adapter🔌
Switching between european, american, british and australian standards.
⚡AC socket & USB fast charging combo⚡
Powerful functionality. Wide range of applications. Portable design.
🔬Advanced GaN technology🔬
New-generation semiconductor gallium nitride technology. Higher heat dissipation efficiency. Increased power output. Lower operating temperatures. Stable performance.
🤖AI smart temperature control🤖
40 temperature checks per second. Real-time monitoring. Effective temperature control. Safe fast charging.

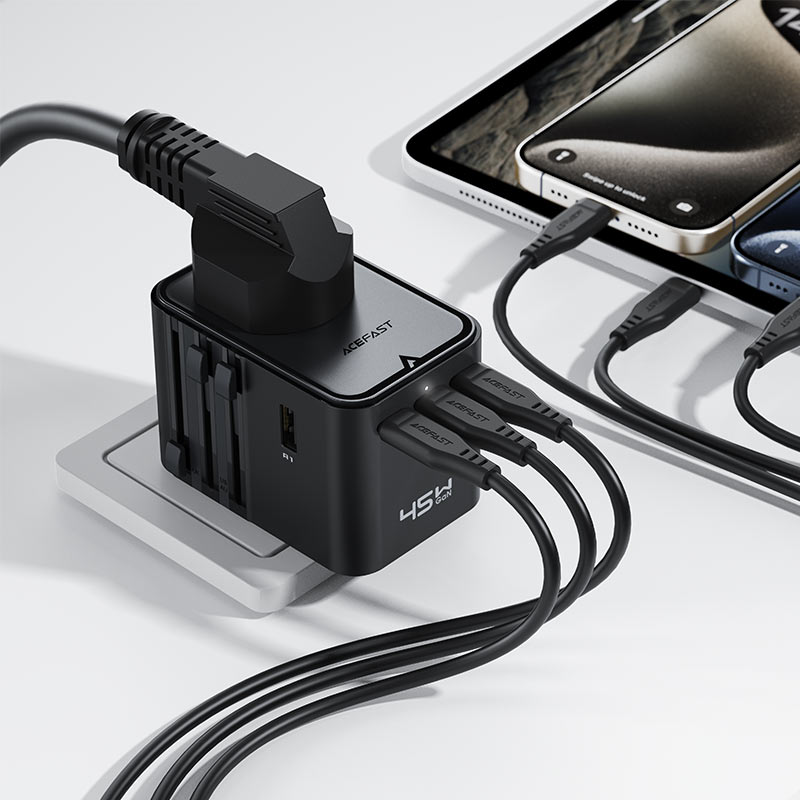

🔋Multi-port charging🔋
Intelligent power distribution. Automatic device detection. Smart power allocation. Efficient charging.

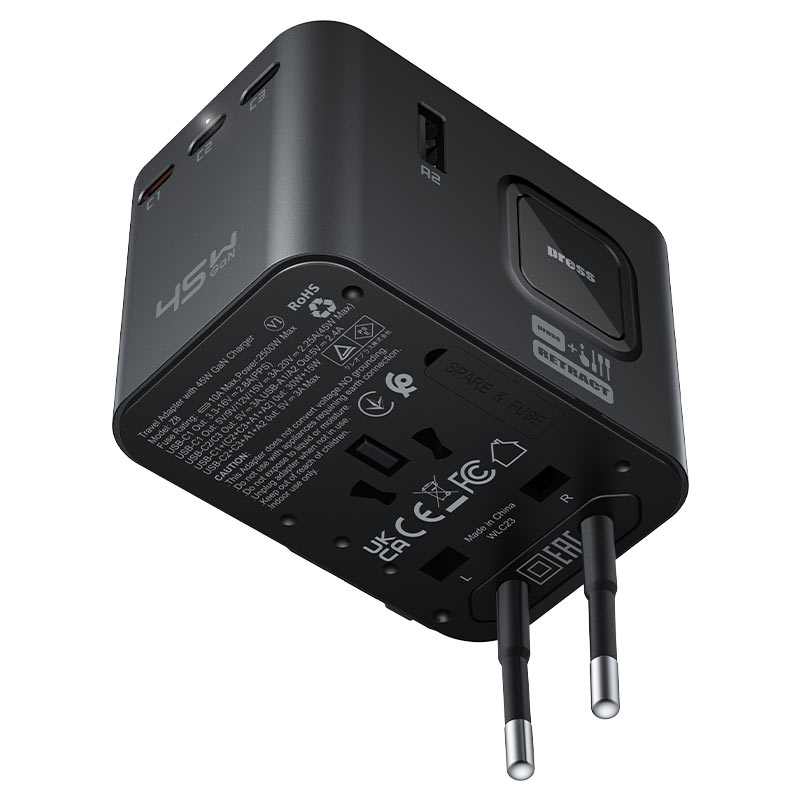

🔐Interlocking feature🔐
Only one plug can extend at a time. Enhanced safety during use.
🛡️Two 10A fuses🛡️
Backup and active protection – double safety layer.
🌐Multi-protocol support🌐
Compatible with: PPS, PD3.0, PD2.0, QC4+, QC3.0, QC2.0, AFC, FCP, SCP. Covers over 99% of digital charging devices.
💻Broad compatibility💻
Works with: smartphones, tablets, laptops, gaming consoles and other mainstream electronic devices.

What’s in the box?

acefast z8 icon noframe

Charging adapter x 1

manual book noframe icon

Manual x 1
